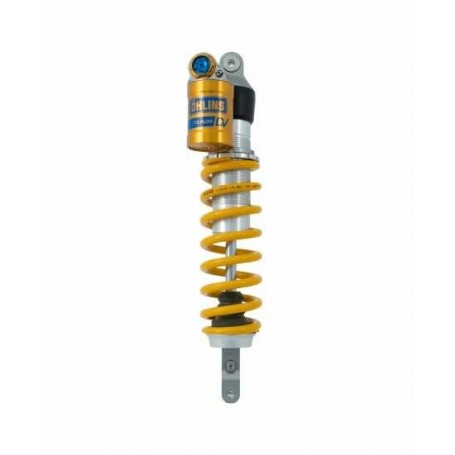

Öhlins TTX Flow DV Shock for Beta RR2T/RR4T
Dispatch in 2-4 weeks
Fast delivery
14 day return policy
Secure Payment
Responsive Customer Service
€1,362.10
€1,741.13
-21.77%
Fast delivery
Fast and reliable shipping across the World
14 day return policy
Changed your mind? You can return your order within 14 days (EU/EEA customers).
Secure Payment
All payments are encrypted and processed securely through a trusted provider.
Responsive Customer Service
We always respond quickly – wherever you're contacting us from.
We are happy to introduce a highly effective high-speed adjuster with unique design at the TTX Flow DV, so far unseen on the market. Our high-speed adjuster is efficiently targeting position, stroking velocity, g-force hold up and bottoming control. Additionally, we have progressed further on comfort and traction through the introduction of a new rebound needle and shaft jet design, which give significant improvements. Furthermore, a new compression valve interface allowing for a more comfortable character on our products.
Öhlins MX & Enduro shock absorbers are delivered without spring. The correct spring for the riders weight must be ordered separate. Information regarding the suitable spring series as well as recommendations for the spring rate can be found in the product details and in the mounting instructions.
Type code
T46PR1C2W
| T | Twin tube |
|---|---|
| 46 | Piston diameter: 46 mm |
| P | High pressure gas type of shock absorber with external “piggy back” reservoir. |
| W | Shock absorber delivered without spring, needs to be ordered separately. |
| R1 Flow | Rebound adjuster TTX Flow |
Technical data
| Length | 474 mm |
|---|---|
| Stroke | 131 mm |
| Position | rear |
| Spring series | 06310- & 06451- spring series |
| Recommended oil | 01304-XX |
| Packaging unit | pieces |
Adjustment possibilities
- Low speed rebound damping
- Low speed compression damping
- High speed compression damping
- Spring preload
Purchased parts package
- Shock absorber TTX Flow DV
- Spring (optional, select for riders weight, see mounting instruction)
- Owners manual and mounting instruction
Additional options
Mechanical spring preload adjusters are available as an additional option to change the sag quick and easy using an 8mm Allen key. Without the preload adjuster the spring preload can be adjusted with c spanners (not in the purchased parts package).
Fits the following vehicles
Beta RR 2T 125, 2020 – 2022
- Motorsport product, not for use on public roads
Beta RR 2T 125/250/300 Racing, 2020 – 2021
- Motorsport product, not for use on public roads
Beta RR 2T 200, 2020 – 2022
- Motorsport product, not for use on public roads
Beta RR 2T 250/300, 2020 – 2022
- Motorsport product, not for use on public roads
Beta RR 4T 350/390/430/480, 2020 – 2022
- Motorsport product, not for use on public roads
Beta RR 4T 350/390/430/480 Racing, 2020 – 2021
- Motorsport product, not for use on public roads
