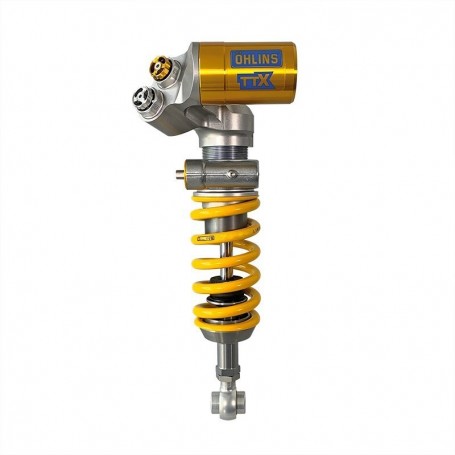

Öhlins rear shock TTX GP. S 1000 RR 2019-
zoom_out_map
chevron_left chevron_right
On sale! -10%

Öhlins rear shock TTX GP. S 1000 RR 2019-

Ask for availability
1116.67 € €1,234.17 -10%
Make an Offer

Your Offer is sent.

Your Offer is accepted, please check your inbox.

  •     *Required Fields

Loading

Based on your bikes performance, its price and available mounting space we have designed a shock that we think suits it, both when it comes to price and performance.

We start by choosing a type which we tailor-make for your specific bike. The basic setup, the design of the shim stacks and the calibration of the adjusters, is tested both on road and track. They are the results of true tests with your bike and no guesswork!

Öhlins manufactures more than 300 different shock absorber models, each model is tailor-made for one specific bike. The concept of all Öhlins products is not a secret, it is precision. Precision provides superior control of the damping force and the key to our success.


Based on your bike’s performance, its price and available mounting space we have designed a shock that we think suits it, both when it comes to price and performance.

We start by choosing a type which we tailor-make for your specific bike. The basic setup, the design of the shim stacks and the calibration of the adjusters, is tested both on road and track. They are the results of true tests with your bike and no guesswork!

Öhlins manufactures more than 300 different shock absorber models, each model is tailor-made for one specific bike. The concept of all Öhlins products is not a secret, it is precision. Precision provides superior control of the damping force and the key to our success.

Twin tube

Piston diameter: 36 mm

Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.

Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.

Adjustable length.

Integrated hydraulic spring preload adjuster. Adjuster wheel or hexagon on the adjuster.

Technical data

Length: 369 +2/-10 mm
Stroke: 80 mm
Rate N/mm: 54 N/mm
Position: rear
Mounted spring: 01096-11
Spring series: 01096-xx
Packaging unit: pieces

Downloads

BM 568
BM568
Data sheet
Model
S1000RR 2019-
BMW
S 1000 RR 2019
S 1000 RR 2020
front_rear
rear
