Öhlins FSK FKC 102 Normal Height 10 Fork Spring

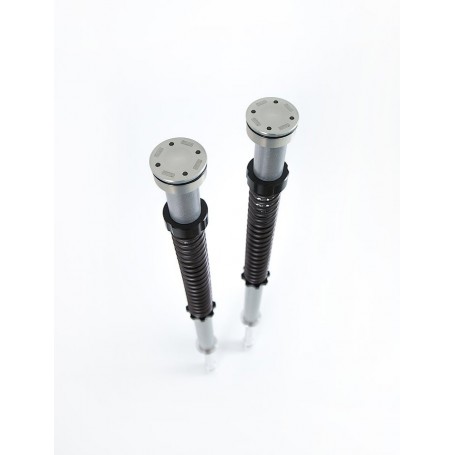

The Öhlins FKC Cartridge Kit introduces Öhlins advanced suspension technology to the front forks of the popular line of Harley Davidson FLH/FLT Touring Baggers. Built on the race proven Öhlins NIX technology, the front fork cartridge damping system vastly improves performance, comfort and vehicle control for the Harley-Davidson front forks.
To maximize the damping performance available in confines of a fork leg, compression and rebound damping are separated between the legs. Also, we did away with the hassle of external adjusters. Just install and enjoy! Of course, optional spring rates are available for individual rider weights, preferences and use of the bike.
The Öhlins cartridge system fits into the original front fork, springs have to be ordered individually. Please follow our recommendations regarding spring rates and oil in relation to rider's weight and preference listed in the specific cartridge kit's mounting instruction.
25mm Cartridge Kit R&T
| Position | front |
|---|---|
| Spring series | 08866-Serie |
| Recommended oil | 01309-01 |
| Oil level mm | 80 mm |
| Packaging unit | pair |
For a correct installation of the cartridge kit into the standard front fork the following tools are required. These tools are not included and need to be purchased in addition at the Öhlins online shop.
Öhlins does not offer technical support to end users. Therefore it is strongly recommended to have the cartridge kit installed by a professional motorcycle or suspension workshop. Authorized Öhlins dealers and Service Centers can be found HERE.
Will not fit Road King CVO 2014 and Electra Glide Low 2016!!
The front fork springs needs to be ordered separately with part no 08866-01 (rate 10 N/mm) or 08866-02 (12 N/mm).
For lowering this Cartridge kit you need to order a separate kit with part no 08866-03. Lowering will be ca. 25mm. Springs with 13 N/mm rate are included in the package.
It is recommended to contact an authorised ÖHLINS Service Center for installation.
ESA version can get warning light in display, this does not affect bikes performance.
For this cartridge kit we provide several fork spring options.
Does not fit Road King CVO 2014 and Electra Glide Low 2016!
