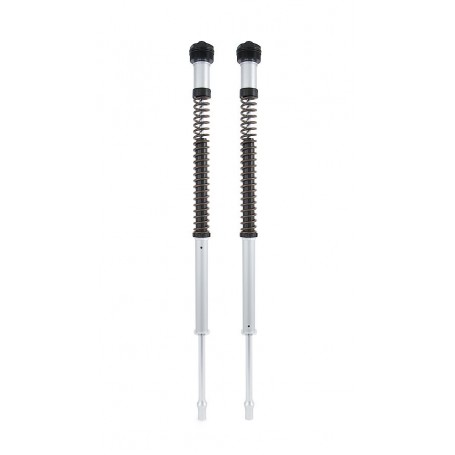

Öhlins NIX 22 Cartridge Kit for Harley-Davidson FL Touring 14-16 (Showa)
zoom_out_map
chevron_left chevron_right
On sale! -22%
Free Shipping

Öhlins NIX 22 Cartridge Kit for Harley-Davidson FL Touring 14-16 (Showa)

Dispatch in 1 week
€894.35 €1,144.35 -21.85%
warning Last items in stock
  Fast delivery

Fast and reliable shipping across the World

  14 day return policy

Changed your mind? You can return your order within 14 days (EU/EEA customers).

  Secure Payment

All payments are encrypted and processed securely through a trusted provider.

  Responsive Customer Service

We always respond quickly – wherever you're contacting us from.

Make an Offer

Your Offer is sent.

Your Offer is accepted, please check your inbox.

  •     *Required Fields

Loading

Fits with


Öhlins NIX 22 cartridge kits are based on our experience learned through decades of testing and racing in high tier championships. Our cartridge kits deliver loads of performance together with stable damping characteristics while ensuring great comfort and contributing to rider confidence. With the NIX22 cartridge kits this also available for motorcycles with conventional front forks.

Each NIX 22 Öhlins cartridge kit has been tested extensively and tailor made to suit the individual requirements and characteristics for each individual bike. In combination with the well proven “NIX” design which features compression damping in the left leg and rebound damping in the right leg, it allows for a more precise function and stability. All adjustments including spring preload are made at the top cap.

Type code

NIX22

Technical data

Positionfront
Spring series08790-xx
Recommended oil01309-01
Oil level mm140
Packaging unitpair

Installation tools

For a correct installation of the cartridge kit into the standard front fork the following tools are required. These tools are not included and need to be purchased in addition at the Öhlins online shop.

  • Stopper plate 8/10/12, part no. 02810-03
  • Tool, pull up M8, part no. 01765-08

Fits the following vehicles

Harley-Davidson Road Glide Custom CVO FLTRXSE (FL3), 2014 – 2016

  • Type: FL3
  • ABE (Germany)

Harley-Davidson Road Glide Special FLTRXS (FL3), 2014 – 2016

  • Type: FL3
  • ABE (Germany)

Harley-Davidson Road Glide Ultra CVO FLTRUSE (FL3), 2014 – 2016

  • Type: FL3
  • ABE (Germany)

Harley-Davidson Road Glide Ultra FLTRU (FL3), 2014 – 2016

  • Type: FL3
  • ABE (Germany)

Harley-Davidson Street Glide CVO FLHXSE (FL3), 2014 – 2016

  • Type: FL3
  • ABE (Germany)

Harley-Davidson Street Glide FLHX(S) (FL3), 2014 – 2016

  • Type: FL3
  • ABE (Germany)

Harley-Davidson Ultra Glide Classic FLHTCU (FL3), 2014 – 2016

  • Type: FL3
  • ABE (Germany)

Notes

Öhlins does not offer technical support to end users. Therefore it is strongly recommended to have the cartridge kit installed by a professional motorcycle or suspension workshop. Authorized Öhlins dealers and Service Centers can be found HERE.

Springs are not included in the kit and have to be ordered individually. See Mounting Instructions for choice of correct spring rate. It is recommended to contact an ÖHLINS Service Center for installation.

It is recommended to contact an authorised ÖHLINS Service Center for installation.

ESA version can get warning light in display, this does not affect bikes performance.

Downloads

The Öhlins cartridge system fits into the original front fork, springs are included. Please follow our recommendations regarding spring rates and oil in relation to rider's weight and preference listed in the specific cartridge kit's mounting instruction.

Additional Consumables

Various operating materials may be required for the professional installation of the cartridge kit. These are not included in the scope of delivery and can also be ordered via the Öhlins online shop. Please refer to the installation instructions for the respective product.

  • Red grease, 100 g, part no. 00146-01
  • Grease Statoil CaH 92, 100 g, part no. 00159-02
  • Loctite 2400, 50 ml, part no. 01791-25
  • Loctite 2700, 50 ml, part no. 01791-27
FKS 226
FKS226
Data sheet
Model
Harley Davidson
Harley-Davidson
FL Touring (Electra Glide, Street Glide, Road Glide, Ultra Classic) 2014-2016
Front / Rear
Front
Delivery
Dispatch in 1 week
Stroke
116
Length
736
