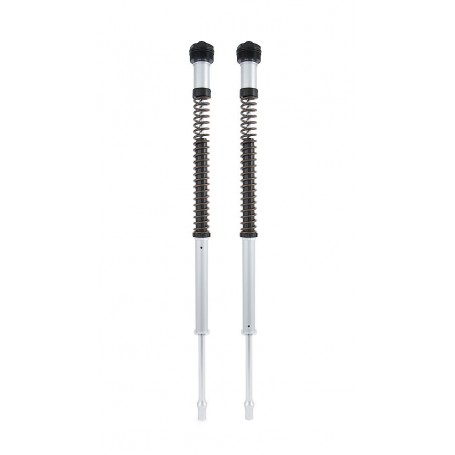

Öhlins NIX 22 Cartridge Kit for HD Softail 18-19 Breakout/Slim/Deluxe/HC/LR/Street Bob Fork
zoom_out_map
chevron_left chevron_right
On sale! -37%
Free Shipping

Öhlins NIX 22 Cartridge Kit for HD Softail 18-19 Breakout/Slim/Deluxe/HC/LR/Street Bob Fork

In Stock

Product is available in our store Taevakivi 1, Tallinn

€725.00 €1,144.35 -36.65%
warning Last items in stock
  Fast delivery

Fast and reliable shipping across the World

  14 day return policy

Changed your mind? You can return your order within 14 days (EU/EEA customers).

  Secure Payment

All payments are encrypted and processed securely through a trusted provider.

  Responsive Customer Service

We always respond quickly – wherever you're contacting us from.

Make an Offer

Your Offer is sent.

Your Offer is accepted, please check your inbox.

  •     *Required Fields

Loading


Öhlins NIX 22 cartridge kits are based on our experience learned through decades of testing and racing in high tier championships. Our cartridge kits deliver loads of performance together with stable damping characteristics while ensuring great comfort and contributing to rider confidence. With the NIX22 cartridge kits this also available for motorcycles with conventional front forks.

Each NIX 22 Öhlins cartridge kit has been tested extensively and tailor made to suit the individual requirements and characteristics for each individual bike. In combination with the well proven “NIX” design which features compression damping in the left leg and rebound damping in the right leg, it allows for a more precise function and stability. All adjustments including spring preload are made at the top cap.

Type code

NIX 22

Technical data

Positionfront
Spring series08423-xx
Recommended oil01309
Oil level mm140 mm
Packaging unitpair

Installation tools

For a correct installation of the cartridge kit into the standard front fork the following tools are required. These tools are not included and need to be purchased in addition at the Öhlins online shop.

  • Stopper plate 8/10/12, part no. 02810-03
  • Tool, pull up M8, part no. 01765-08

Fits the following vehicles

Harley-Davidson Softail Breakout, 2018 – 2023

  • ABE (Germany)

Harley-Davidson Softail Deluxe, 2018 – 2023

  • ABE (Germany)

Harley-Davidson Softail Heritage Classic, 2018 – 2023

  • ABE (Germany)

Harley-Davidson Softail Low Rider, 2018 – 2023

  • ABE (Germany)

Harley-Davidson Softail Slim, 2018 – 2023

  • ABE (Germany)

Harley-Davidson Softail Street Bob, 2018 – 2023

  • ABE (Germany)

Notes

Öhlins does not offer technical support to end users. Therefore it is strongly recommended to have the cartridge kit installed by a professional motorcycle or suspension workshop. Authorized Öhlins dealers and Service Centers can be found HERE.

Springs are not included in the kit and have to be ordered individually. It is recommended to contact an ÖHLINS Service Center for installation.

It is recommended to contact an authorised ÖHLINS Service Center for installation.

ESA version can get warning light in display, this does not affect bikes performance.

Downloads

The Öhlins cartridge system fits into the original front fork, springs are included. Please follow our recommendations regarding spring rates and oil in relation to rider's weight and preference listed in the specific cartridge kit's mounting instruction.

Additional Consumables

Various operating materials may be required for the professional installation of the cartridge kit. These are not included in the scope of delivery and can also be ordered via the Öhlins online shop. Please refer to the installation instructions for the respective product.

  • Red grease, 100 g, part no. 00146-01
  • Grease Statoil CaH 92, 100 g, part no. 00159-02
  • Loctite 2400, 50 ml, part no. 01791-25
  • Loctite 2700, 50 ml, part no. 01791-27
FKS 221
FKS221
Data sheet
Model
Harley
Harley-Davidson
Softail Breakout 2018-2022
Softail Deluxe 2018-2022
Softail Heritage Classic 2018-2022
Softail Low Rider 2018-2022
Softail Slim 2018-2022
Softail Street Bob 2018-2022
Front / Rear
Front
Delivery
In Stock
Stroke
130
Length
733
