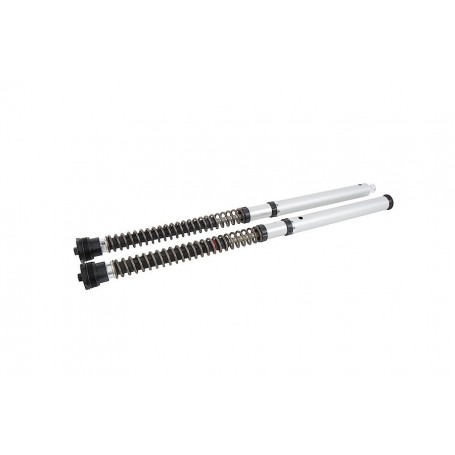

Öhlins NIX 30 Cartridge Kit for HD Softail Sport Glide 18-22 (Showa)
zoom_out_map
chevron_left chevron_right
On sale! -37%
Free Shipping

Öhlins NIX 30 Cartridge Kit for HD Softail Sport Glide 18-22 (Showa)

In Stock

Product is available in our store Taevakivi 1, Tallinn

€725.00 €1,144.35 -36.65%
warning Last items in stock
  Fast delivery

Fast and reliable shipping across the World

  14 day return policy

Changed your mind? You can return your order within 14 days (EU/EEA customers).

  Secure Payment

All payments are encrypted and processed securely through a trusted provider.

  Responsive Customer Service

We always respond quickly – wherever you're contacting us from.

Make an Offer

Your Offer is sent.

Your Offer is accepted, please check your inbox.

  •     *Required Fields

Loading


The Öhlins NIX 30 Street cartridge kit features new designed black top caps to give the bike a more subtle look. The “NIX” technology is developed from high level racing such as WSBK to deliver the utmost performance on road as well as on track. It fits bolt on in the standard fork legs and gives you adjustable compression and rebound damping separated in each leg, as well as preload adjustment, all accessible from the black top caps.

Öhlins cartridge systems are designed for installation in the standard fork. The cartridge systems are supplied with or without springs, depending on the article number. Please refer to the respective installation instructions. Please follow our recommendations regarding spring rates and oil in relation to rider's weight and preference listed in the specific cartridge kit's mounting instruction.

Type code

NIX30

30Piston diameter: 30 mm

Technical data

Positionfront
Spring series08423-Serie
Recommended oil01309-01
Oil level mm140 mm
Packaging unitpair

Installation tools

For a correct installation of the cartridge kit into the standard front fork the following tools are required. These tools are not included and need to be purchased in addition at the Öhlins online shop.

  • Tool pull up top-out spring M12, part no. 01765-03
  • Tool cylindertube cap, part no. 01797-07
  • Fork tube tool 43 mm, part no. 00786-05

Fits the following vehicles

Harley-Davidson Softail Sport Glide, 2018 – 2022

  • ABE in preparation (Germany)

Notes

Öhlins does not offer technical support to end users. Therefore it is strongly recommended to have the cartridge kit installed by a professional motorcycle or suspension workshop. Authorized Öhlins dealers and Service Centers can be found HERE.

Springs have to be ordered separately. It is recommended to contact an ÖHLINS Service Center for installation.

It is recommended to contact an authorised ÖHLINS Service Center for installation.

ESA version can get warning light in display, this does not affect bikes performance.

Downloads

The Öhlins cartridge system fits into the original front fork, springs are included. Please follow our recommendations regarding spring rates and oil in relation to rider's weight and preference listed in the specific cartridge kit's mounting instruction.

Additional Consumables

Various operating materials may be required for the professional installation of the cartridge kit. These are not included in the scope of delivery and can also be ordered via the Öhlins online shop. Please refer to the installation instructions for the respective product.

  • Red grease, 100 g, part no. 00146-01
  • Grease Statoil CaH 92, 100 g, part no. 00159-02
  • Loctite 2400, 50 ml, part no. 01791-25
  • Loctite 2700, 50 ml, part no. 01791-27
FKS 510
FKS510
Data sheet
Model
Harley
Harley-Davidson
Softail Sport Glide 2018-2022
Front / Rear
Front
Delivery
In Stock
Stroke
130
Length
783
