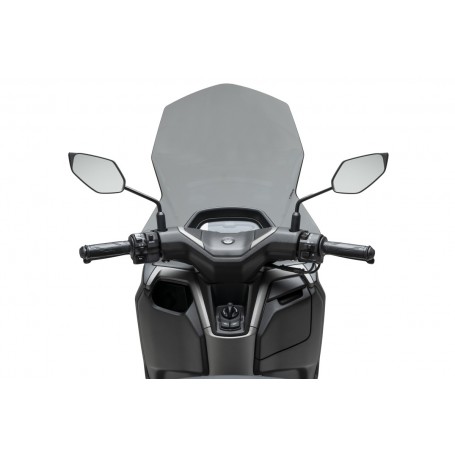

Puig Windshield V-Techline Touring Yamaha N-Max 125 25

General information

Give your bike extra protection with the V-Tech Line Touring Windshield from Puig.

Manufactured in 4mm high impact acrylic, it has been carefully designed, developed and tested in the wind tunnel to achieve maximum efficiency and strength in the face of inclement weather and gusty wind, guaranteeing a high degree of aerodynamic resistance.

Its main feature is the angled shape in its central and lateral section that facilitates air channelling, redirecting it to the lateral areas and minimizing turbulence.

In addition to its functionality, Puig has wanted to take care of the image of your motorcycle, so they have designed the piece in 4 different finishes: black, clear, smoked and dark smoked.

It is easy to assamble and you can have the V-Tech line Touring Windshield in a few minutes. To facilitate the work, Puig offers an instruction booklet with it.

Dimensions

(LENGTH X WIDTH): 700 x 520mm

270 mm. higher than the original

Thickness: 4 mm

Design

The new Puig V-TECH Touring windscreen for the Yamaha NMAX 125 has been designed to provide superior aerodynamic protection and a functional design tailored to the user’s needs in urban environments.

Built for daily city use in any weather condition, this large windscreen ensures the rider is protected against adverse situations thanks to its wide surface that effectively covers the torso, arms, and hands.

The side surfaces have been carefully designed to divert air away from the hands and arms without interfering with the mirrors, and are compatible with Puig scooter handguards. This additional width provides greater coverage and comfort, even during complex urban rides.

At the bottom, the windscreen perfectly integrates with the design of the NMAX 125’s position light, achieving a balanced and harmonious aesthetic.

Available in light smoke, dark smoke, and clear versions, this windscreen perfectly combines functionality and style, adapting to each user’s preferences.

Data

Manufactured at Puig’s facilities using advanced technologies and more than 60 years of industry experience.

Made of high-quality acrylic with a thickness of 4 mm and exceptional transparency, this windscreen features rounded edges of Ø4 mm to ensure maximum safety and comply with the strictest European regulations. Additionally, it holds TÜV and KBA certifications. Its dimensions are 520 mm wide and 700 mm high.

Mounting

Installation is quick and easy: simply screw the Puig windscreen onto the supplied hex bolts, using the same mounting points as the original Yamaha NMAX 125 screen.

It is recommended to periodically check the tightness of the screws to maintain optimal fixation.

Aerodynamics

The V-TECH Touring windscreen is 270 mm taller than the original stock screen.

Thanks to its large height and width, it effectively diverts airflow around the hands, arms, upper torso, and head areas, offering greater comfort, reduced fatigue, and a safer riding experience, even in adverse weather conditions.
