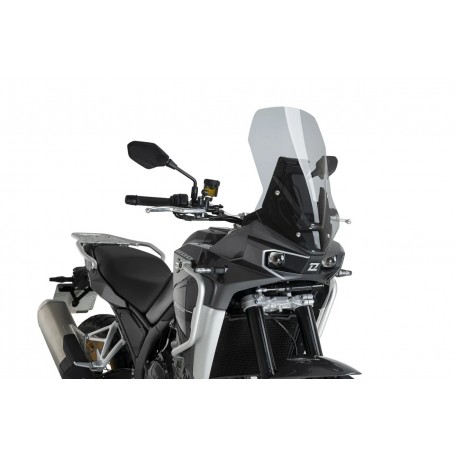

Puig Touring Screen for Kove 800X Rally - Smoke

Touring screens, developed by Puig in Barcelona, are designed with the objective to aerodynamically protect the rider. In addition, these screens fit perfectly with the adventure style and aesthetics of the trail models thanks to their wide range of colors and different sizes.

These Touring screens are manufactured using the most advanced technologies, using 4mm thick acrylic material, with UV protection and with a 2mm rounded edge. This finish gives it a more elegant touch and offers greater security, fulfilling with the regulations of the German TÜV.

The assembly of this screen follows a process that can be done without having to ask for a mechanic thanks to its simple and intuitive adaptation. The package also includes the aerodynamic studies that have emerged from comparing the Puig screen with the original in a virtual wind tunnel.

Please check the ABE carefully to see if this part is suitable for your motorcycle.

DESIGN

The Puig Touring windscreen for the Kove 800X PRO 2024 is designed for riders seeking greater aerodynamic protection without compromising on a sleek and functional look.
Its top central area is completely flat, ensuring excellent visibility through the screen. The lower side shapes have been specifically designed to deflect air away from the hands, enhancing comfort and improving overall aerodynamics.
It features clean and defined lines, with a central figure that runs from the base to the top of the screen. The lower section also acts as an aerodynamic deflector, fully integrated with the motorcycle’s design.
Available in clear, light smoke, and dark smoke.

DATA SHEET

Designed and manufactured in Barcelona at Puig’s facilities, using state-of-the-art technology and over 60 years of experience in the motorcycle industry.
Made of high-quality CN acrylic, 4 mm thick, with rounded edges for added safety and a refined finish.
Dimensions: 340 mm wide by 515 mm high.
The Puig Touring screen is 115 mm taller than the stock screen of the Kove 800X PRO 2024.

MOUNTING

Very easy to install in just 15 minutes, with no mechanical knowledge required. Simply follow the included printed instructions or access them online.
It is recommended to periodically check the screw tightness for optimal security.

AERODYNAMICS

An in-depth road aerodynamic study was conducted to analyze the performance of different screen heights (original, +100 mm, +115 mm), both with and without a Puig visor.
Results show that with the Puig Touring screen (+115 mm), the rider experiences up to 1.2 kg less pressure compared to the stock screen, representing a 67% improvement.
This pressure reduction leads to:
• Increased comfort
• Reduced fatigue
• Less strain on long rides
• Better protection for riders over 1.80 m tall

ADDITIONAL INFORMATION

Includes road-tested aerodynamic report.
TÜV-certified product.

MEASUREMENTS (HEIGHT X WIDTH):

515 x 340MM
115mm with respect to the clock
Thickness: 4 mm

Mounting Instructions
Aerodynamic Test
Drawing
Homologation ABE
